Beiträge von jlopez

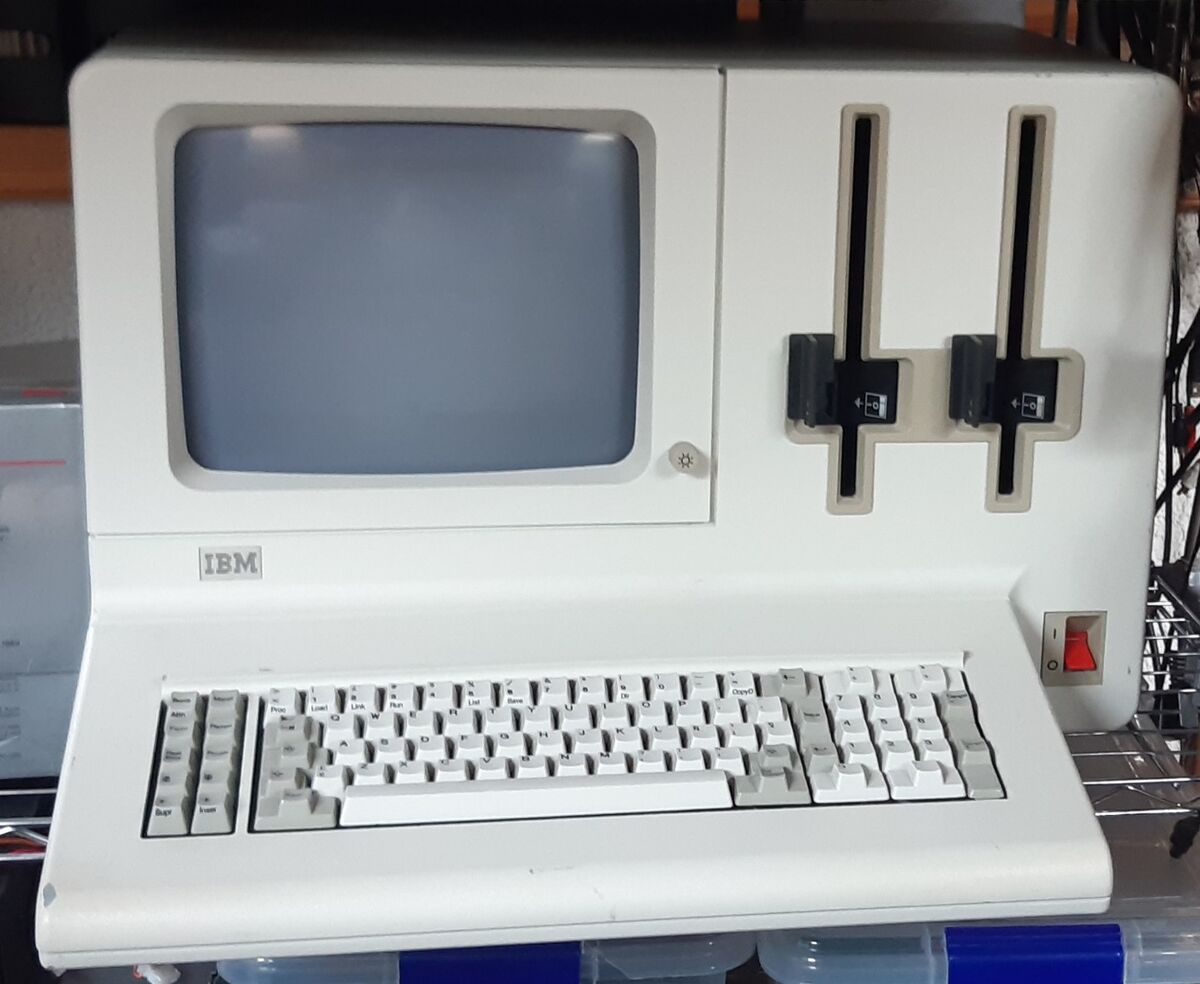

    Das Typenschild lässt sich leider nicht mehr lesen. Es ist nur noch ganz schwach andeutungsweise was zu sehen.

    Ich habe vorhin mal kurz mit dem Oszi geschaut - scheint kein FBAS Signal rauszukommen.

    Aber das ist lösbar. Evtl. hat's ja nur ein paar der berühmten Tantal Kondensatoren zerlegt :)


    I don't think this is a problem related to capacitors. Were they the responsibles, the power supply would have a short and lock itself as a result, the computer wouldn't do anything at all. The good part is that you seem to have the damage located in the video card. Think about it... the system proceeds to load from the floppy after some keyboard interaction. CPU, keyboard and floppy cards must be fine. For testing, better remove the RAM card, the computer doesn't need it at all for minimal power-up.


    Regards,

    Jaume

    Greetings,


    I have a board from the arcade "Speed Up" (checked by its reference), from Spanish manufacturer Gaelco. The board seems to contain the EPROMs with the game and its graphics, as well seven custom ICs and what I think it is a Jamma connector (I am not entirely sure because I am not used to arcade hardware).




    The board was made in 1997 and seems to be in good shape but it is only part of the assembly and therefore the system is incomplete. Other than the cabinet what's missing is the board with the CPU (according to my sources, a 68k). Being that incomplete and missing hardware and experience related to arcades, it is offered as untested.


    The price I'm asking is estimated from the cost of some its components, which uncludes four 96-pin connectors: 35€. As the weight of the packaging is aprox. 558g, transport to any country from the EU would be done by the Spanish mail system Correos (13,20€ ordinary; 17,20€ certified).



    Summary

    Condition: apparently undamaged, untested

    Price: 35€

    Transport: Correos, 13,20€ (ordinary) / 17,20€ (certified); source (page 5).


    If there is any doubt, don't hesitate to ask.


    Regards,

    Jaume

    Which problems do you have with your P3? You have the 48K+16K RAM configuration in your P3?

    I can't recall if it started at all... at least a drive was running free and the other had an IC that seemed to be blown. But at this moment won't work for other reasons... Thanks for your interest.


    I think we should document the mechanism for bank switching with all the many P2 / P2 / P30 and sks KISS users.

    :thumbup:





    Or is the work too much?

    Cumbersome for a single person. Nevertheless, I could gradually post captures of exposed boards so nets could be generated. Having proper schematics is becoming a necessity for repairs...


    If you want, I could start a new thread on this subject as soon as the full board is exposed.


    Regards,

    Jaume

    Hello gpospi


    Definitely the memory wiring is different. I don't have the 64K configuration, but the 48+16 one. Months ago I found that both cards "talk" between each other using slot C. the 16KB board doesn't send the data bus values into the memories, they are receiving them from the 48K board and then are latched. There are lots of ICs in that board for only 16K... that must be the logic responsible for banking. I found another memory IC other than the '373, which is a '74 (d-type flip-flop). I traced its output to the connector (which feeds some gates before reaching its end). I suggest you to find such flip-flop in your 64K board.


    I'm glad you found the defective board. Thinking you had a defective CPU card, I started to disassemble CAAA08 last night. My P3 is also broken, even after a year... not because I couldn't but because convenience. Its unpopulated backplane is used for electrical tests for my own boards before connecting them into a working system (preventing wrecking the systems that work fine). The second reason is reverse engineering. Not long after receiving it I took care of documenting the backplane but the cards still remain to be documented.


    Regards,

    Jaume

    Hello,


    Toshi You found a nice one. ;)


    The case seems sturdy... seems far better than the one the P2 uses. Is that the case?

    I think I had never seen so many 2114 packed together so tightly. Implementing a memory of 48KB in size those days had to require three boards like this one... no wonder why they switched to dynamic ram. :/


    I know it's untested, but I remade the schematics for an EPROM reader I started a while ago. It uses the power supply from a standard P2 and its logic maps two zif sockets (one targetted at TMS2116 and the other at 1702A) and a standard 2716 (for the dumping routines) at the unused 5KB present in the lower 16KB of memory. I tried to maintain it as simple as possible. The idea is to test it this summer. I hope it could prove useful to you.


    P2 - EPROM Reader.pdf


    Regards

    Hello Toshi ,


    My effort is for dumping them only. While having the option to write is a good thing, it's not something I was seeking. My priority is to savage the data contained in the character ROMs, as they aren't accessible to the CPU and couldn't be saved with the RS232 trick.


    Thank you for those schematics. I'm sure they may prove useful.


    Hello helwie44 † ,


    For the special voltages, a regulator in case of the -5v (the easy way) and a resistor plus a zener for the -9V should do the trick.

    No, it wouldn't cause any trouble for an unexpanded P2, or an expanded P2 if it does not use the 64K mode.


    A circuit to burn them... that's beyond my skill. I don't see it to be feasible with the voltages supplied by the P2 PSU, especially the 1702A which requires 47V. Toshi 's options seem good to burn the EPROM.


    Regards Toshi  helwie44 †

    Hello helwie44 † ,


    This is a crude, unfinished prototype. Its schematics did not left the paper format, tomorrow I'll see if I still have them (I needed to clean my table as it was crowded with papers and notes). Meanwhile I signalled the different parts of the board and made a short description of its behaviour. It may also need a refinement and maybe even rework/patches.



    A: A couple of 70LS04. They invert the address bus from A0 to A10 (11 bits, 2KB address space).

    B: Decode logic. I used a 74LS08 to "cut" the 64KB range and selecting the lowest quarter. This selection signal is fed to the 74LS138, which divides the selected 16KB address range into 1KB chunks. The '08 is used again to "glue" two of the resulting signals from the '138 to form a 2KB range. The output signals from this block are the 16K selection to C, the 1K selection to D and the 2K selection signal to D.

    C: 74LS240. Inverts the output from the EPROMs and places the result into the data bus of the computer.

    D: Firmware ROM. This socket with the 2716 pinout is mapped at 0x1C00 - 1FFF (I told it wrong before, my apologies... that's what happens when giving memory too much confidence, especially when this was done in December or January). It should contain the software to read the EPROMs at D and prevent to reload the software manually every time the computer is turned off.

    E: TMS socket. This ZIF socket is wired with the TMS 2716 pinout. The only remaining signal to be connected to it is the -5V.


    The -5V generator circuit was not installed and while there are also lots of wires on the solder side, many connections still need to be made.


    The truth is that this board was in my scrap box. I abandoned the project when I had the prototype nearly built. I lost confidence on it due to its messy construction and the lack of proper test material. The only TMS2716 I have are those in my P2 units, none of them German. This means that in case of failure and destruction of the EPROM the data loss would be permanent... you know, there are no backups. A proper tester should have expendable ROMs filled with known content to test and dump the risky ones when reliability has been assured (unfortunately this is not the case).


    Some considerations if you are to build this. This board needs to be longer than the average P2 logic board; this is necessary if the ZIF is to be used, otherwise the board should be plugged and unplugged each time an EPROM is placed on it; this requires the system to have the upper case removed. I imagine that, being the reading process software controlled, it could be made compatible with the older TMS2708 without altering the hardware. For the 1702A, the simplest solution would be a second ZIF with a different pin arrangement and mapped at the same address space than the TMS socket and also the inclusion of the -9V line. As a reminder, this board has no logic to check if the memory bank is switched on as it was designed to work on my unexpanded 48K Italian unit; if this card is placed in a 64K system with its 16K board plugged there will be conflict in the data bus when reading the expansion memory.


    Regards,

    Jaume

    Hello helwie44 †


    If I understood correctly, are you seeking for an EPROM reader? I have one (mostly) built.



    That's my first 48KB and later 64K (failed) prototype which was recycled into something more useful. There are more wires on the solder side of the board... it lacks some connections between the '240 and the connector. It also still lacks the voltage divider/regulator from -12V to -5V. I imagine that for the 1702A to be interfaced an additional -9V line should be added.


    The target model is the TMS2716, no modern EPROM reader will read them without an adapter. The socket is mapped at 0x2000 - 0x2FFF and the ZIF is mapped at the unused 2KB RAM for the video system (I cannot remember it now) which is not used in unexpanded models. This way the driver shouldnt need to be loaded each time the computer is turned off-on (that's useful if you have lots of EPROMs to save).


    The way this board was designed was simplistic and thus it doesn't has bank control logic. It matters because it uses address ranges in the system page and in expanded systems it could cause trouble.


    If that's what you need, I could check if I have the schematics for this; but later today or tomorrow because today expires one of my deadlines.


    Regards,

    Jaume
